Kitchen Cabinet Hardware Placement Guide: Handles, Knobs & Drawer Pulls for Etobicoke & Scarborough

Good cabinet hardware placement is consistent, comfortable to reach and confirmed before the first hole is drilled. On doors, pulls and knobs are normally positioned near the opening edge; on drawer fronts, hardware is generally centred visually on the front. Exact placement should be tested against the actual door style and hardware rather than copied from a generic diagram.

For Etobicoke and Scarborough kitchen projects, this is a small decision with a permanent result. A misplaced hole can damage an otherwise new door, so hardware layout should be treated as part of installation planning.

Choose the hardware before drilling

Start by confirming whether the kitchen will use knobs, pulls or a combination. Then measure the actual hardware. For a pull, the critical drilling dimension is the centre-to-centre distance between mounting holes—not simply the overall length of the handle.

Browse the current cabinet hardware and accessories category to understand the type of hardware being planned, but always use the physical hardware or its verified drilling template before making holes.

Placement on cabinet doors

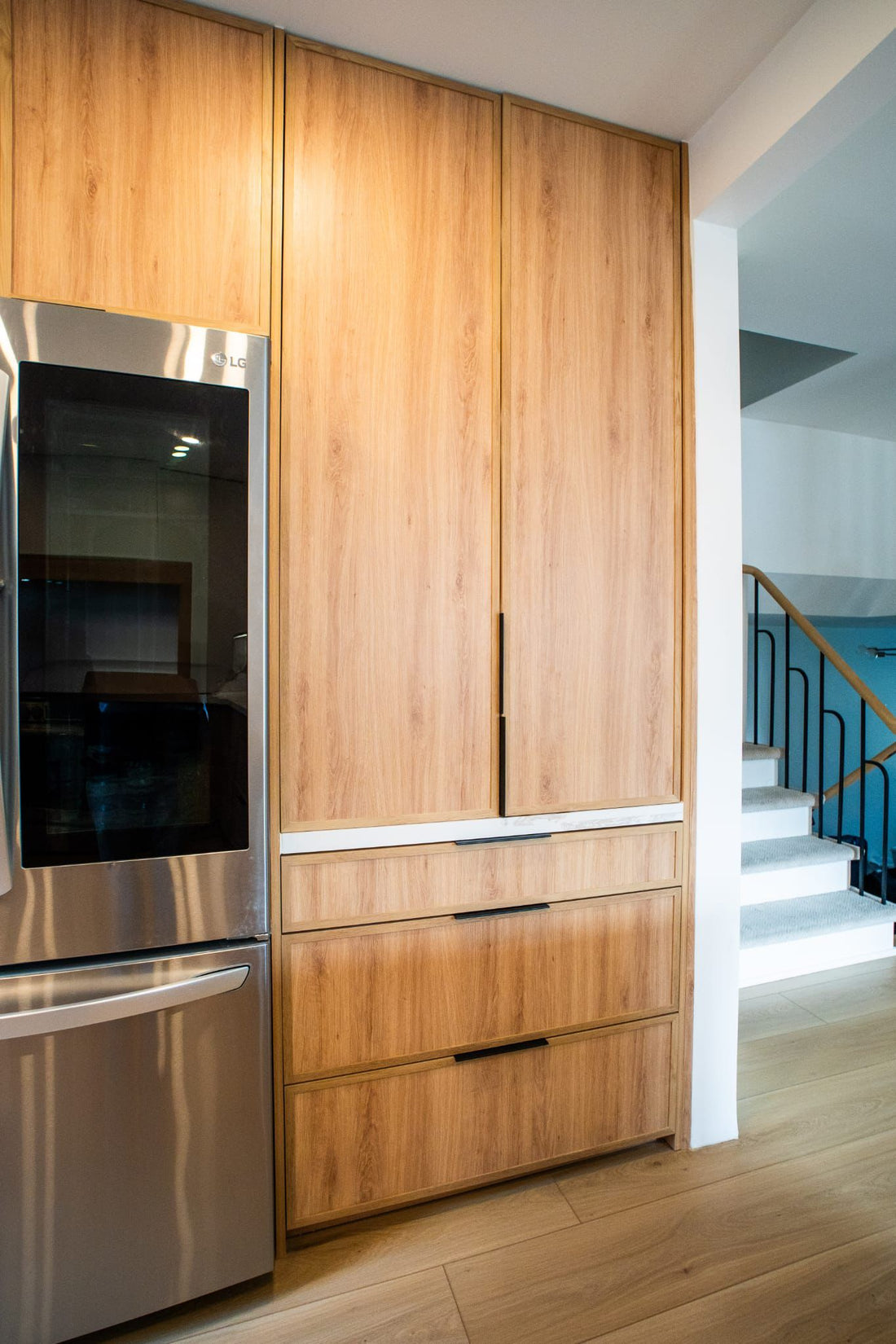

Hardware should sit close enough to the opening edge to be comfortable without crowding the edge profile. On Shaker-style doors, installers often use the rail-and-stile geometry as a visual reference. The important principle is repetition: once a position is selected for a door type, use the same measured position throughout matching doors.

Upper and base doors may be mirrored vertically so the handles remain near the user's hand. Tall pantry doors require extra thought because a position that looks centred on a very tall door may not be comfortable to use.

Placement on drawer fronts

For a conventional drawer front, the hardware is commonly centred horizontally. Vertical placement depends on the front's height and profile. Wide drawers may benefit from a longer pull for comfortable use, but the pull still needs to match the drilling pattern and proportions of the front.

If a kitchen mixes standard base cabinets with drawer cabinets, lay out all drawer-front hardware together so the visual rhythm is consistent across adjacent cabinets.

Use a jig or template

A repeatable jig is one of the simplest ways to reduce drilling errors. Set the jig using a test piece or sample, verify the dimensions, then keep the same reference edge for matching doors.

Check these conflicts first

• Door and drawer hardware should not collide at inside corners.
• Adjacent pulls should not interfere when two doors open toward each other.
• Very long pulls need enough flat mounting area.
• Appliance handles and cabinet pulls should have comfortable clearance.
• Replacement doors may have existing holes that affect hardware choice.

Common mistakes

The most expensive mistake is drilling before the final hardware is on site. Other common errors include measuring overall pull length instead of hole spacing, flipping a template unintentionally, failing to test corner collisions and assuming every door style has the same ideal position.

FAQ

Should all cabinet handles be the same size?

Not necessarily. A design can use different pull lengths for different drawer widths, but the family and placement should look intentional.

Can knobs and pulls be mixed?

Yes. For example, knobs may be used on doors and pulls on drawers. Consistency within each cabinet type is more important than using one hardware form everywhere.

When should hardware holes be drilled?

After the cabinet fronts and final hardware have been verified. Measure twice, test the template and confirm door swings before drilling.

Hardware is a finishing step, but it should be planned early. For the rest of the installation sequence, use the kitchen cabinet installation checklist.
