Kitchen Cabinet Measurement Verification Before Ordering: Burlington & Oakville Checklist

Before ordering kitchen cabinets, verify the room a second time. Small missed conditions—casing, an out-of-square corner, appliance dimensions or a ceiling detail—can change a cabinet plan. For Burlington and Oakville homeowners, a verification pass should confirm the room, openings, appliances and installation clearances before the cabinet list is finalized.

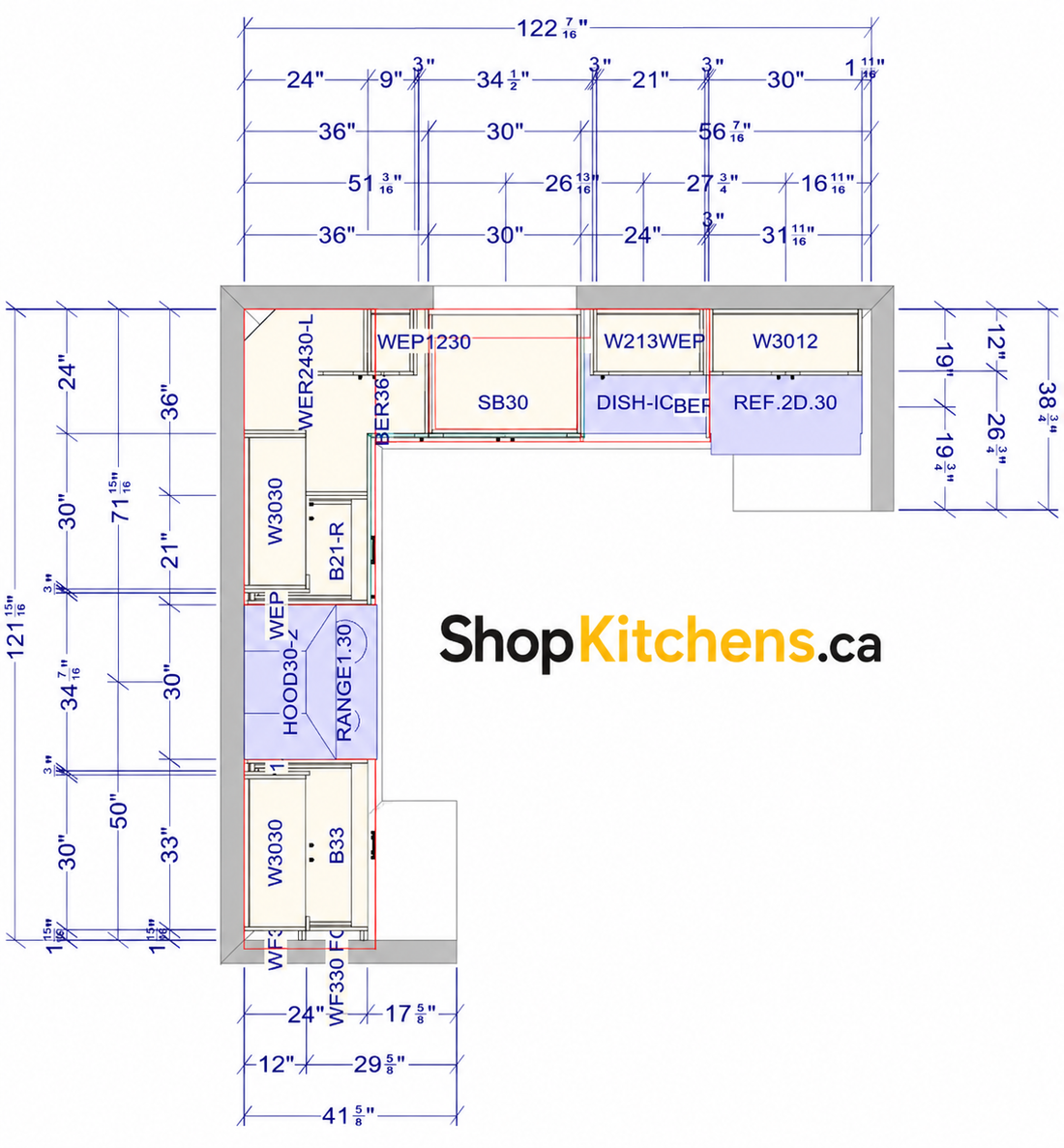

Start with one complete room sketch

Show every wall involved in the kitchen. Record overall wall lengths, then break each wall into smaller segments. The smaller dimensions should reconcile with the overall dimension. Mark doors, windows, openings, plumbing and anything projecting into the room. ShopKitchens' kitchen measuring guide explains the basic sequence.

Verify openings and trim

For each window or door, record the opening width and its position. Include casing when it affects where cabinetry can finish. Also check door swing: a pantry or refrigerator panel placed too close to a doorway can create a conflict even when the widths add up.

Measure ceiling height in several places

Do not assume a ceiling is perfectly level. Measure floor-to-ceiling height at multiple points. Record bulkheads, soffits and crown conditions separately. Tall wall cabinets still need installation clearance. Compare options in the 30, 36 and 42 inch upper cabinet guide.

Confirm appliance specifications

Record the actual refrigerator, range, dishwasher, microwave or hood dimensions when selected. Nominal descriptions do not replace manufacturer dimensions and clearance requirements. Refrigerators deserve particular attention because doors and handles need room to operate. See the refrigerator cabinet and panel guide.

Check corners and wall conditions

Walls can bow and corners can be out of square. Cabinets are regular boxes, so installation needs adjustment space around irregular construction. Fillers and scribes help doors and drawers clear adjacent walls. The guide to uneven walls and out-of-square corners explains why this matters.

Verify plumbing and sink relationships

Locate the sink centre and plumbing from fixed references. Confirm dishwasher location when applicable. A sink base must work with the sink, plumbing and adjacent cabinet arrangement; do not select it from sink width alone.

Review fillers, panels and finished ends

A cabinet list is not complete just because the boxes fit. Identify where runs terminate against walls, exposed sides need finished treatment, and appliances need panels. Review cabinet fillers and cabinet panels as part of the design.

Perform the final arithmetic check

For every wall, add cabinet widths, appliance openings, fillers and planned gaps. Compare the total with verified usable wall length. Check upper and base runs independently because windows, hoods and tall cabinets can change usable space.

Common mistakes

• Using one ceiling-height measurement.
• Ignoring door or window casing.
• Assuming appliance openings without model specifications.
• Forgetting that corner cabinetry affects two runs.
• Copying old cabinet widths without re-measuring.
• Leaving fillers and panels out of the calculation.

FAQ

Should I measure twice before ordering?

Yes. Use the first measurement for design and a separate verification pass before finalizing the order.

Do appliances need to be selected first?

You need reliable dimensions and clearance requirements for appliances that affect cabinet openings. Selected model specifications are preferable.

What if two wall measurements differ?

Identify why. Recheck reference points, trim and wall irregularity rather than averaging the numbers.

Can photos replace measurements?

No. Photos provide context but not dependable final dimensions.

What should a Burlington homeowner provide?

A room sketch with wall dimensions, openings, ceiling height, appliance sizes and relevant photos provides a strong basis for cabinet planning.

Next step: verify the room first, then translate the confirmed dimensions into the cabinet list. The objective is not only to make widths add up, but to make the finished kitchen install and function correctly.
