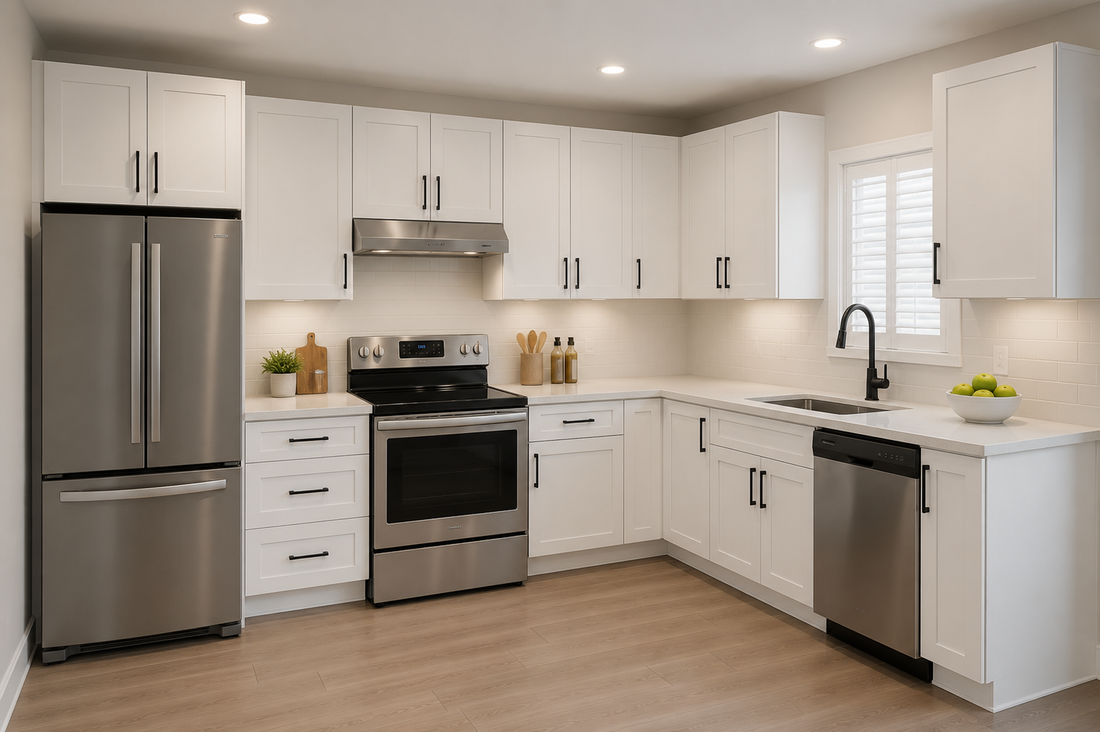

How to Plan Kitchen Cabinets Around Appliances: Fridge, Range, Dishwasher & Microwave
Quick answer: choose or confirm the major appliances before the cabinet list is finalized. Refrigerator width and depth, range type, dishwasher location, microwave placement and wall-oven dimensions can all change the cabinets, panels and openings around them. A cabinet layout that looks correct on paper can still fail if it is based on assumed appliance sizes.
The safest workflow is to measure the room, record the actual appliance specifications, then build the cabinet runs around those fixed requirements. Start with the ShopKitchens measuring guide if the room dimensions are not yet documented.
Start with the actual appliance specifications
Do not design from a label such as “30-inch range” or “36-inch fridge” alone. Record the manufacturer’s required opening, exterior width, height, depth, door or handle projection, ventilation instructions and any installation clearances that affect adjacent cabinetry. The cabinet opening and the visible appliance dimension are not always identical.
If the appliance has not been purchased yet, decide at least the appliance category and target size before cabinet ordering. Changing from a freestanding range to a cooktop and wall oven, for example, can change several cabinets rather than one opening.
Planning the refrigerator zone
The refrigerator often controls a large vertical section of the kitchen. Check its full width, case depth, door depth, hinge clearance and the space needed for the doors to open. A refrigerator beside a wall may need more side clearance than one between two open cabinet runs.
A more built-in appearance can use tall finished refrigerator panels and a deep cabinet above the appliance. ShopKitchens carries refrigerator cabinets and refrigerator panels that can be coordinated with the selected door finish. Include panel thickness in the total run length instead of adding panels after the cabinet widths already consume the wall.
Range, cooktop and wall-oven choices change the cabinet list
A slide-in or freestanding range typically occupies a floor opening between base cabinets. A cooktop sits in the countertop and needs an appropriate base cabinet below, while a separate wall oven requires a tall oven cabinet. Double ovens require their own appliance-cabinet planning. Browse appliance cabinets for the available configurations.
The ventilation choice matters too. A range hood, over-the-range microwave or custom hood arrangement changes the wall cabinets above and beside the cooking zone. Confirm the appliance manufacturer’s installation requirements before sizing those cabinets.
Dishwasher placement should be planned with the sink
A dishwasher is commonly positioned close to the sink because plumbing and everyday loading are easier to coordinate, but its exact location still needs to be shown on the plan. The opening has to fit between finished cabinet or panel surfaces, not simply between rough marks on the wall.
If the dishwasher finishes the end of a cabinet run, a finished support condition may be needed. See dishwasher panels and sink base cabinets. Also confirm that nearby drawers, cabinet doors and appliance doors can all open without colliding.
Choose the microwave location early
Microwaves can be placed over a range, in a wall-cabinet zone, in a base cabinet or in another dedicated appliance position depending on the model and design. Each choice changes the cabinetry. ShopKitchens offers compatible microwave and appliance cabinets, but the appliance dimensions still need to be checked against the specific cabinet.
Check appliance door swings against cabinets
Openings are not enough. Refrigerator doors, dishwasher doors, oven doors and microwave doors need usable swing space. Cabinet drawers beside a corner or appliance also need room to pull out fully. This is especially important in compact L-shaped kitchens and around islands where opposing doors may share the same aisle.
Do not forget fillers and finished panels
Appliance zones are common places for finishing pieces. Refrigerator gables, wall fillers, dishwasher panels and exposed base end panels all consume space. Read Kitchen Cabinet Fillers, Panels and Scribes Explained before approving the final cabinet list.
A practical order of operations
- Measure the finished room and ceiling.
- Record the exact appliance models or required openings.
- Place refrigerator, cooking, sink and dishwasher zones.
- Select corner cabinets if the layout is L-shaped or U-shaped.
- Build the remaining base and wall cabinet widths around those fixed zones.
- Add appliance panels, end panels, fillers and toe kicks.
- Check every door and drawer swing.
- Verify the complete cabinet run against the field dimensions before ordering.
If you already have a sketch, appliance list or kitchen photos, send your kitchen measurements for a free estimate and cabinet-list review.
