Kitchen Cabinet Corner Clearances: Burlington & Oakville Planning Guide
Share
Kitchen cabinet corner clearance is the space that allows doors, drawers, appliances and adjacent cabinets to open without colliding. In a Burlington or Oakville kitchen, checking these clearances before ordering can prevent a layout that looks correct on paper but is frustrating to use after installation.
Why corner clearance matters
Cabinet plans are built from widths, but real kitchens also need operating space. A cabinet beside a return wall, tall pantry, refrigerator panel or another cabinet may need a filler or a different configuration so the door and hardware can clear the neighbouring surface.
This is especially important in L-shaped and U-shaped kitchens, where two cabinet runs meet and multiple doors or drawers can compete for the same space.
Start with the finished room, not just wall length
Measure the wall at more than one height and record anything that projects into the cabinet run. Note casing, baseboard, plumbing, outlets, window trim, door trim and any wall that is visibly out of square. The usable cabinet run is the space left after these constraints are accounted for.
Four collision checks to make before ordering
1. Door against wall
A cabinet placed tight to a perpendicular wall can have its door or handle contact the wall before opening fully. A planned filler can create separation and give the door room to operate.
2. Drawer against handle
At an inside corner, a drawer front can collide with the handle on a cabinet on the neighbouring run. Test the projected drawer path, not only the cabinet box dimensions.
3. Appliance against cabinet
Refrigerator doors, dishwasher doors and range handles extend beyond their nominal openings. Always use the appliance manufacturer's installation and clearance instructions when finalizing the surrounding cabinetry.
4. Upper cabinet against adjacent door
Wall-cabinet doors near a corner can also interfere with each other. Door style, hinge action and handle projection all affect the usable clearance.
Corner cabinet choice changes the layout

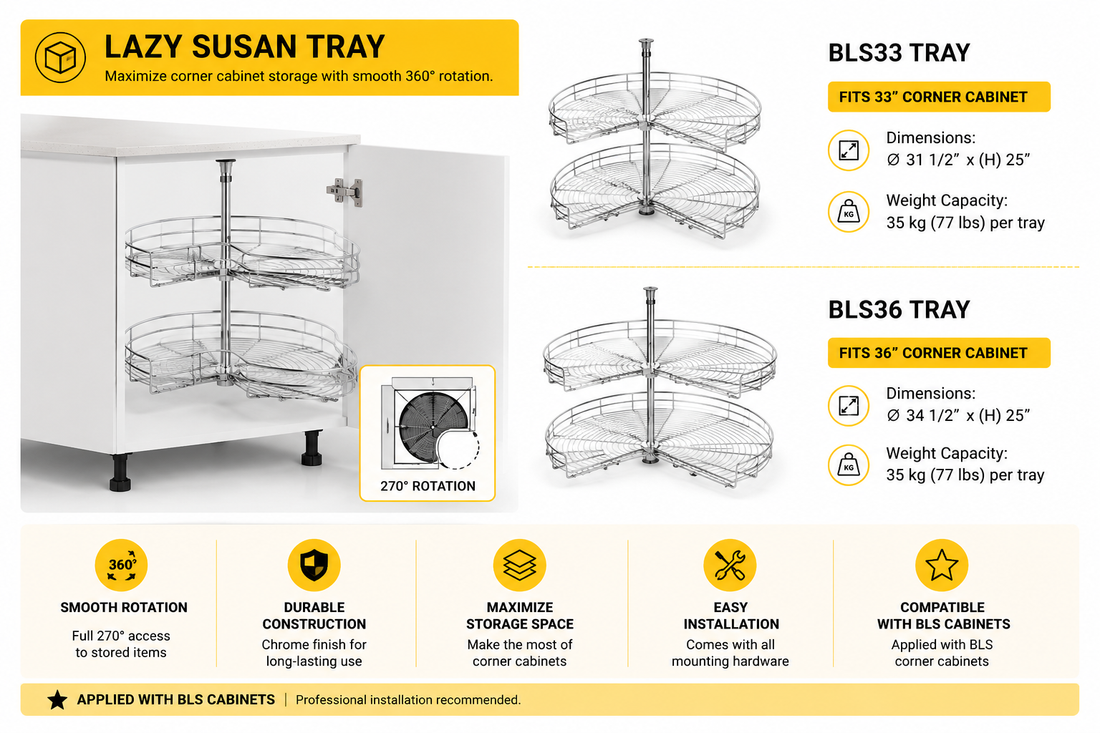

A blind-corner cabinet, diagonal-style corner solution or other corner configuration reserves different amounts of wall space. Decide the corner strategy before filling the remaining run with standard cabinets. ShopKitchens' guide to lazy Susan vs blind corner cabinets explains the planning trade-offs.
Why fillers are functional
A filler is not simply decorative trim. In the right location it creates operating clearance, provides room to scribe against an uneven wall and can keep doors and drawers away from casing or adjacent hardware. See cabinet fillers, panels and scribes explained for the role of each finishing component.
A practical Burlington measurement workflow
- Measure each finished wall run.
- Mark doors, windows and trim.
- Record appliance models and required openings.
- Identify every inside corner.
- Choose the corner cabinet strategy first.
- Reserve required operating and filler space.
- Fit the remaining cabinet widths into the usable run.
- Check every door, drawer and appliance swing.
For older or renovated homes around Burlington, Waterdown and Oakville, do not assume two walls meet at a perfect 90-degree angle. The existing guide on uneven walls and out-of-square corners covers that measurement problem in more detail.
Common planning mistakes
The most common mistakes are filling every inch of wall with cabinet boxes, choosing the corner cabinet after the rest of the run is already planned, ignoring handle projection, and using appliance width as the only appliance dimension. Another mistake is assuming a drawing proves the room is square.
FAQ
Do kitchen cabinets need space from a side wall?
Sometimes. The required space depends on the cabinet, door, hardware and wall condition. A filler is commonly used where clearance or scribing is needed.
Can two cabinet doors meet at a corner?
They can be planned near each other, but their opening paths must be checked so doors and handles do not collide.
Should I choose the corner cabinet first?
Yes. In an L- or U-shaped layout, the corner solution establishes how much of each adjoining run remains available.
Does an appliance opening need clearance too?
Yes. Use the appliance manufacturer's specifications for ventilation, door swing and installation requirements rather than relying on nominal appliance width alone.
What should I verify before ordering?
Verify finished wall dimensions, corner conditions, openings, appliance specifications, cabinet door and drawer swings, fillers, panels and the final cabinet list. ShopKitchens' measurement verification checklist is a useful final review.
Plan the operating space, not only the boxes
A good cabinet layout should work when everything is open, not just when every door is closed. Before ordering, review the plan from the perspective of someone opening drawers, loading the dishwasher and reaching into the corner. ShopKitchens can then be used to compare cabinet options against a measured layout.
